| 名称： | 不锈钢翻边 |
| 工艺： | 冷加工成型 |
| 尺寸： | 1/2"-24"（DN15-DN600) |
| 标准： | GB/T12459、ASME B16.9、JIS B2313、DIN2605 |
| 压力： | PN6-PN40 |
| 材质： | 304、304L、316L、310S、304H、2205等 |
|

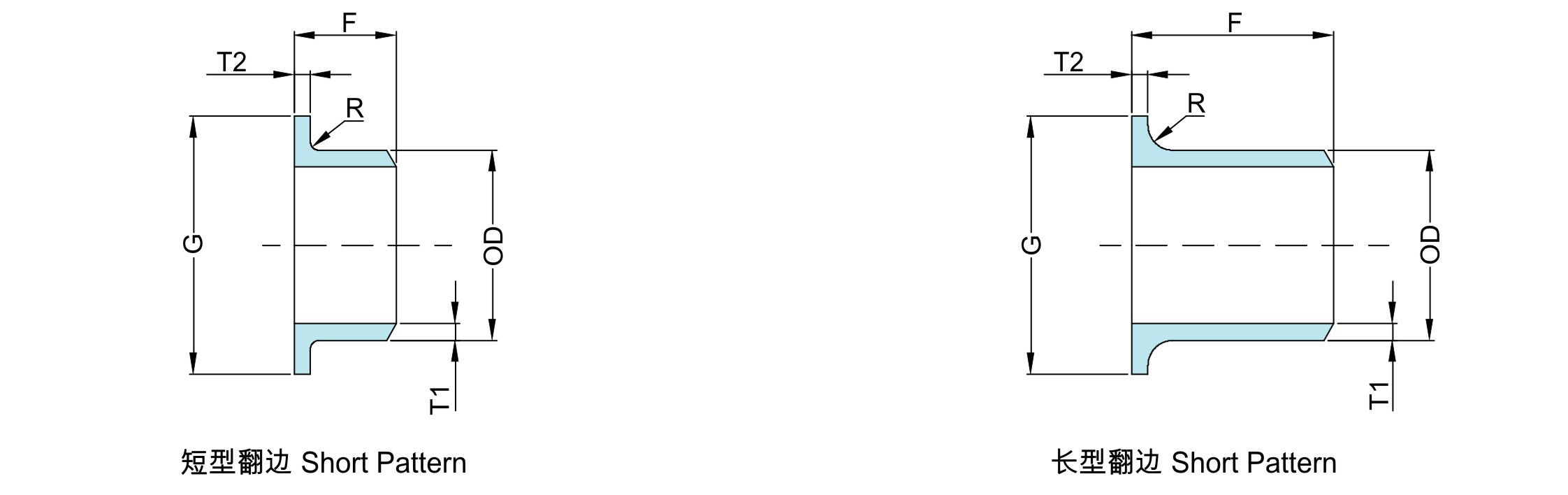

公称通径 Nominal Diameter |
外径 Outside Diameter |
长度 Length F |
搭接外径 Diameter of Lap Nominal&Maximum |
圆角半径 Radius of Fillet R |
|||
| DN | NPS | OD |
长型 LP |
短型 SP |
G |
A Max |
B Max |
| 15 | 1/2 | 21.3 | 76 | 51 | 35 | 3 | 0.75 |
| 20 | 3/4 | 26.7 | 76 | 51 | 43 | 3 | 0.75 |
| 25 | 1 | 33.4 | 102 | 51 | 51 | 3 | 0.75 |
| 32 | 1.1/4 | 42.4 | 102 | 51 | 64 | 5 | 0.75 |
| 40 | 1.1/2 | 48.3 | 102 | 51 | 73 | 6 | 0.75 |
| 50 | 2 | 60.3 | 152 | 64 | 92 | 8 | 0.75 |
| 65 | 2.1/2 | 73 | 152 | 64 | 105 | 8 | 0.75 |
| 80 | 3 | 88.9 | 152 | 64 | 127 | 10 | 0.75 |
| 90 | 3.1/2 | 101.6 | 152 | 76 | 140 | 10 | 0.75 |
| 100 | 4 | 114.3 | 152 | 76 | 157 | 11 | 0.75 |
| 125 | 5 | 141.3 | 203 | 76 | 186 | 11 | 1.5 |
| 150 | 6 | 168.3 | 203 | 89 | 216 | 13 | 1.5 |
| 200 | 8 | 219.1 | 203 | 102 | 270 | 13 | 1.5 |
| 250 | 10 | 273.1 | 254 | 127 | 324 | 13 | 1.5 |
| 300 | 12 | 323.9 | 254 | 152 | 381 | 13 | 1.5 |
| 350 | 14 | 355.6 | 305 | 152 | 413 | 13 | 1.5 |
| 400 | 16 | 406.4 | 305 | 152 | 470 | 13 | 1.5 |
| 450 | 18 | 457.2 | 305 | 152 | 533 | 13 | 1.5 |
| 500 | 20 | 508 | 305 | 152 | 584 | 13 | 1.5 |
| 550 | 22 | 559 | 305 | 152 | 641 | 13 | 1.5 |
| 600 | 24 | 610 | 305 | 152 | 692 | 13 | 1.5 |
